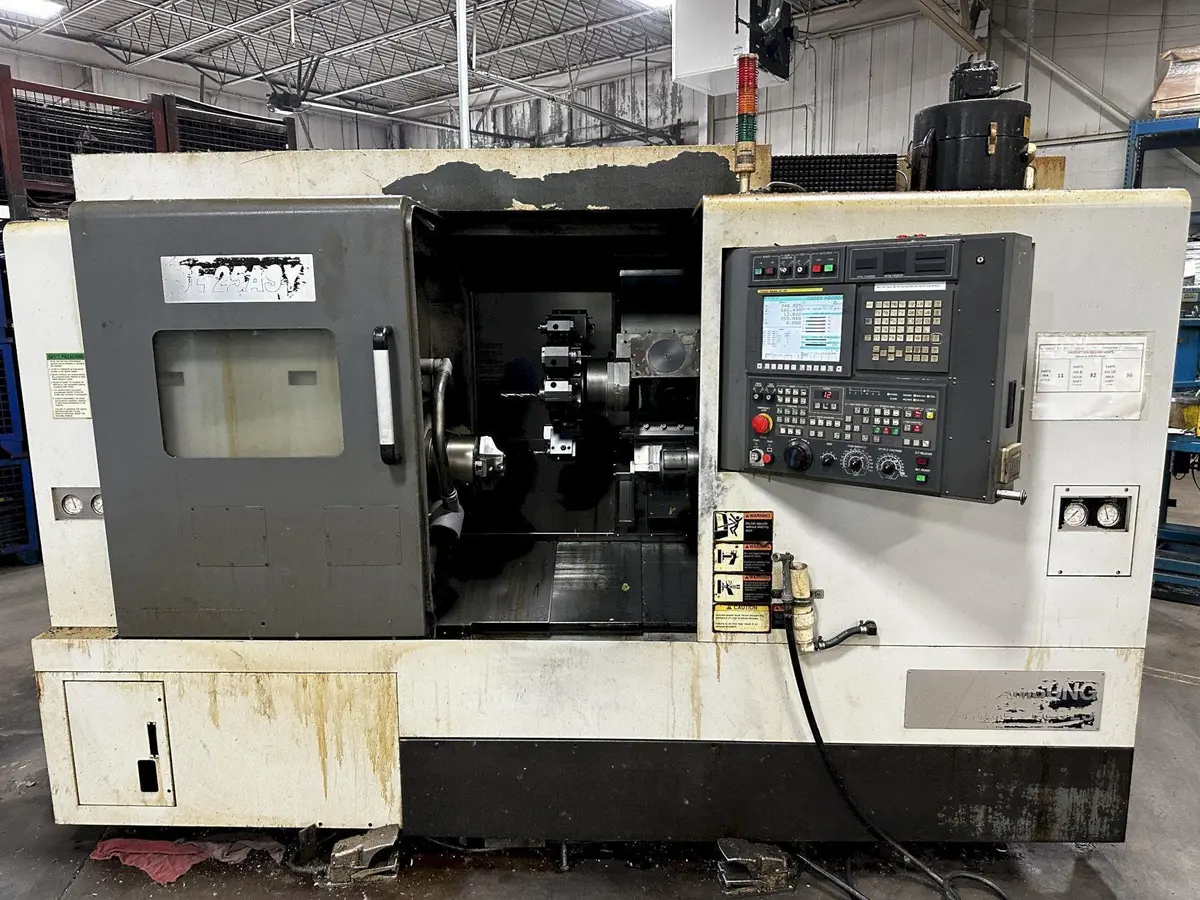

Used 2013 SAMSUNG SL25ASY | Lathes, CNC (3-Axis or More)

Year     2013
CNC Control     yes

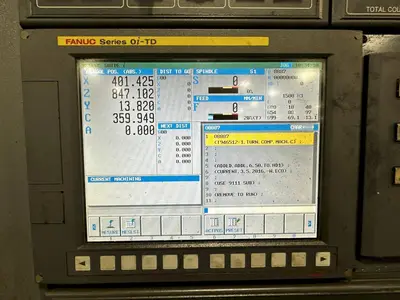

Type of CNC Control     Fanuc 0i-TD
# Axis     5
Swing     25.59 inches
Turning Diameter     14.17 inches
Center Distance     20.47 inches

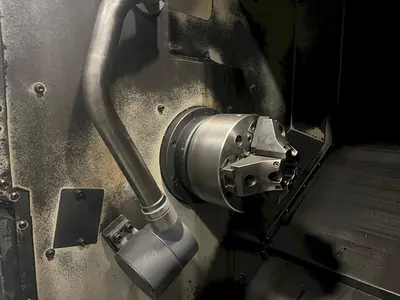

Chuck Size     8 inches
Bar Capacity     2.56 inches
X Axis Travel     9.25 inches
Y-Axis Travel     3.94" (±1.97)
Z Axis Travel     22.83 inches
B Axis Travel (Sub Spindle)     22.83 inches
C Axis Index     0.001°
Rapid Traverse (X/Z)     709/472 ipm
Rapid Traverse Y-Axis     945 ipm
Spindle Nose     A2-6
Spindle Speed     4,000 rpm
Main Motor     20 hp
Tailstock     no
Y Axis     yes
Live Tooling     yes
Live Tooling Speed     5,000 rpm
Live Tooling Motor     7.5 hp
Sub Spindle     yes
Sub Spindle Chuck     6 inches
Sub Spindle Bar Capacity     1.77 inches
Sub Spindle Nose     A2-5
Sub Spindle Speed     6,000 rpm
Sub Spindle Motor (HP)     10 hp

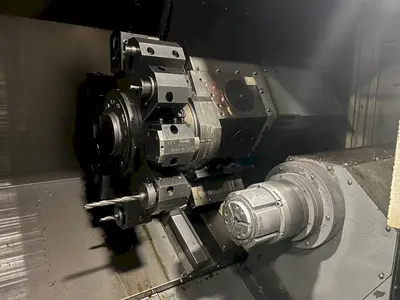

Turret Capacity     12
Dimensions     142" x 76" x 82"
Weight     11023 pounds
Equipped With

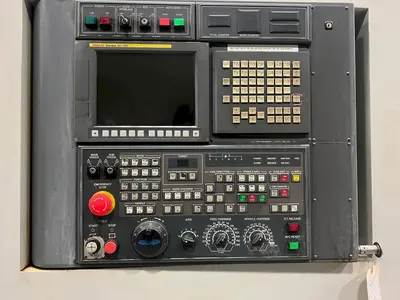

- Fanuc 0i-TD CNC Control
- Chip Conveyor
- Coolant Tank
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter
